FLB Series

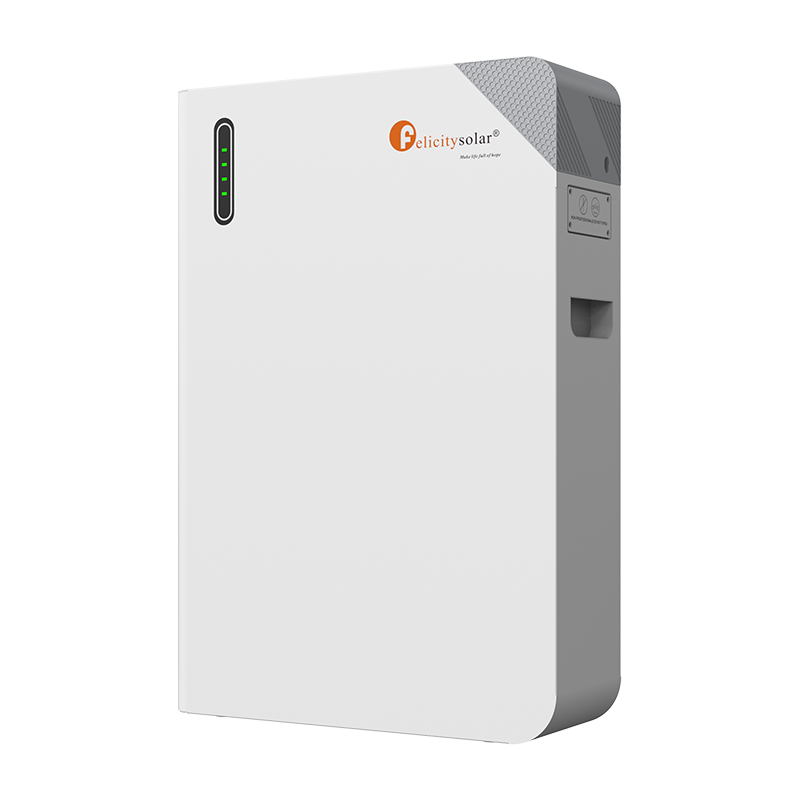

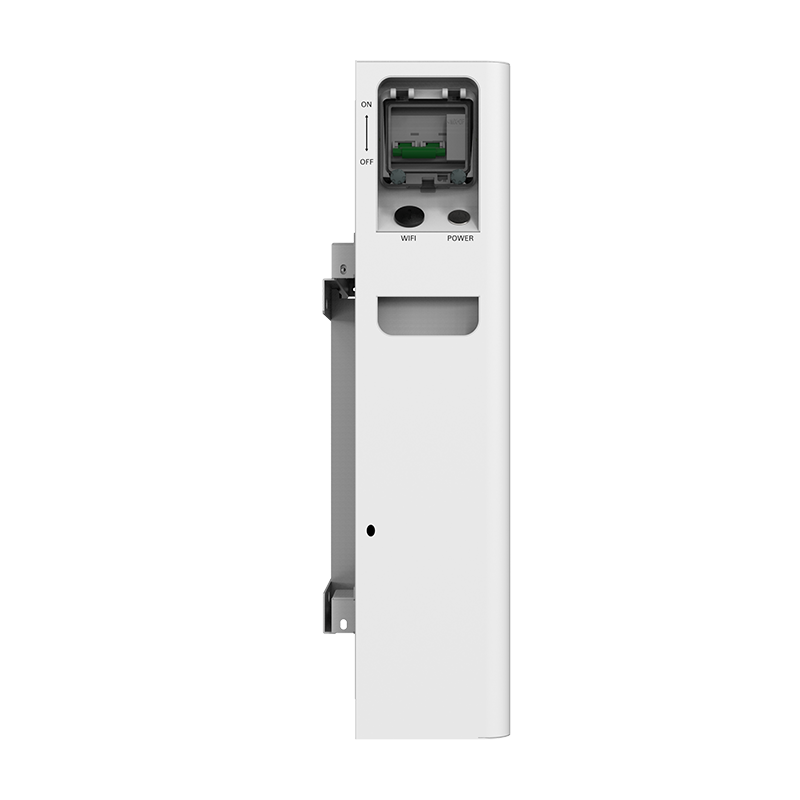

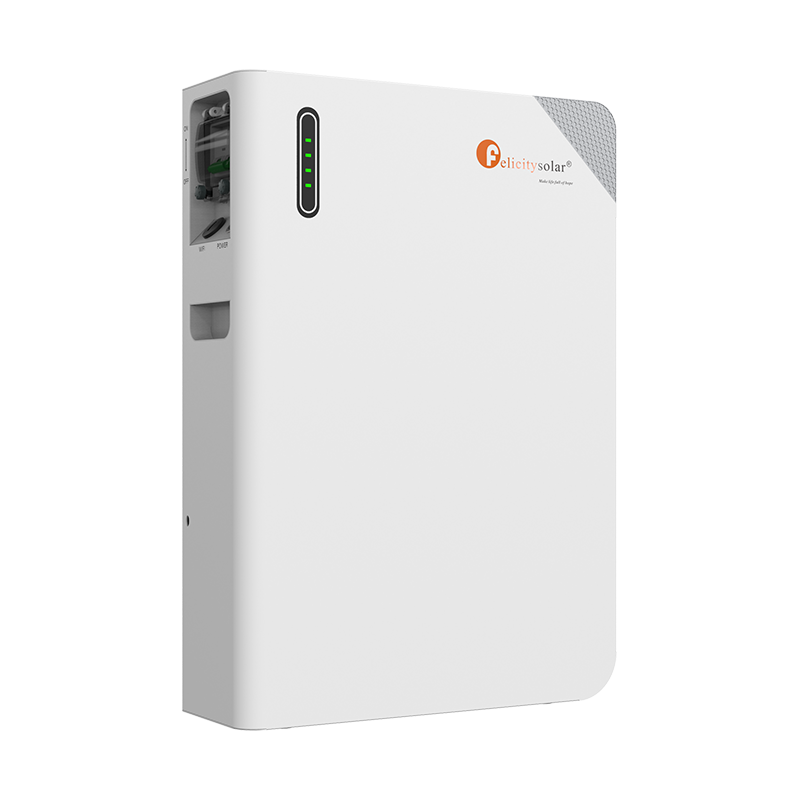

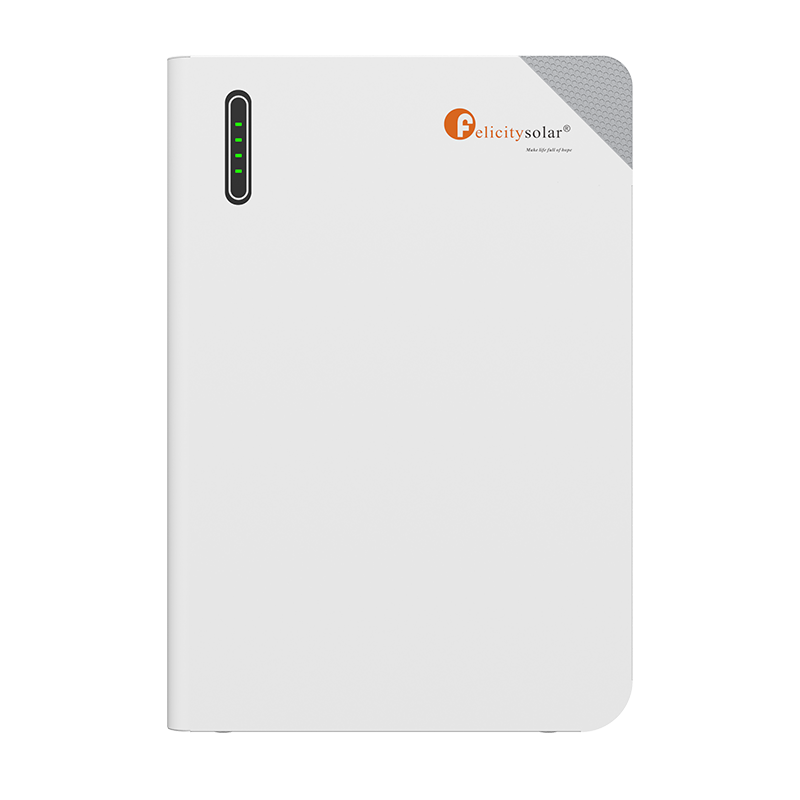

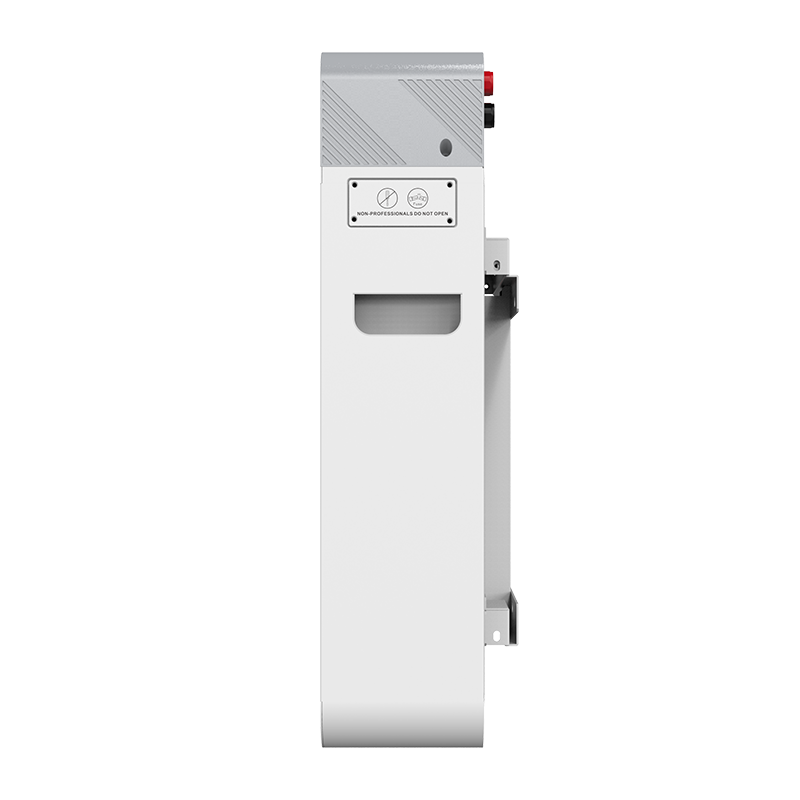

FLB 48100WG1-H
5.12kWh
100Ah
Low Voltage
automatic heating/ optional
Built-in WiFi/Bluetooth
IP65 Protection Level
Built-in aerosol fire extinguisher
Product Introduction
FLB48100WG1-H is equipped with a lithium iron phosphate battery designed for household use. Developed based on customer needs and market demands, this advanced battery storage solution provides high-quality, reliable power for various devices. The product features a long lifespan, suitability for high-temperature environments, and a compact design that requires minimal installation space.
FLB48100WG1-H features a battery management system independently developed by our team. When connected to a grid or photovoltaic system as the power source, the product can store energy by charging the battery. In the event of a power outage from the grid or photovoltaic system, the product independently supplies electricity to household loads. Additionally, multiple units can be connected in parallel to form a high-capacity, multi-module system, meeting long-term energy storage requirements.
FLB48100WG1-H features a battery management system independently developed by our team. When connected to a grid or photovoltaic system as the power source, the product can store energy by charging the battery. In the event of a power outage from the grid or photovoltaic system, the product independently supplies electricity to household loads. Additionally, multiple units can be connected in parallel to form a high-capacity, multi-module system, meeting long-term energy storage requirements.
Product Advantages
• LiFePO4: Higher safe performance and longer cycle life.
• Multiple Protection: Built-in smart BMS,Breaker and Fuse.
• Flexible Installation: Wall-Mounted or Floor-Mounted.
• Wide Compatibility: Compatible with leading inverter brands.
• High Scalability: Capacity up to 163.84kWh with FLB48100WG1-H.
• Built-in WIFI/Bluetooth: Remote monitoring of battery pack data.
• IP65 Protection Level: Suitable for Outdoor Use.
• Equipped with an aerosol fire extinguishing system.
• When the battery experiences overcurrent causing the fuse to blow, it can be easily replaced externally, providing great convenience.
• Multiple Protection: Built-in smart BMS,Breaker and Fuse.
• Flexible Installation: Wall-Mounted or Floor-Mounted.
• Wide Compatibility: Compatible with leading inverter brands.
• High Scalability: Capacity up to 163.84kWh with FLB48100WG1-H.
• Built-in WIFI/Bluetooth: Remote monitoring of battery pack data.
• IP65 Protection Level: Suitable for Outdoor Use.
• Equipped with an aerosol fire extinguishing system.
• When the battery experiences overcurrent causing the fuse to blow, it can be easily replaced externally, providing great convenience.
Model
FLB48100WG1-H
Operating Voltage
44.8-57.6V
Energy
5.12kWh
Scalability
Up to 32 units in parallel(163.84kWh)
Depth of Discharge(DOD)
≥95%
Cycle Life
≥6,000 Cycles
Communication
RS485 / CAN
Protection Level
IP65
Download
- [Certificate for Safe Transport of Goods by Road] FLS2F8E01YL501 (FLB48100WG1-H)
- [Certificate for Safe Transport of Goods by Sea] FLS2F8E01YM501 (FLB48100WG1-H)
- [GHS Label Design Report] FLS2F8E01P01 (FLB48100WG1-H)
- [Hazard Information Label] FLS2F8E01DI01 (FLB48100WG1-H)
- [MSDS] FLS2F8E01SDS01 (FLB48100WG1-H)
- [UN38.3 TEST REPORT] FLS2F8E01U01 (FLB48100WG1-H)
- [UN38.3 TEST Summary] FLS2F8E01G01 (FLB48100WG1-H)
