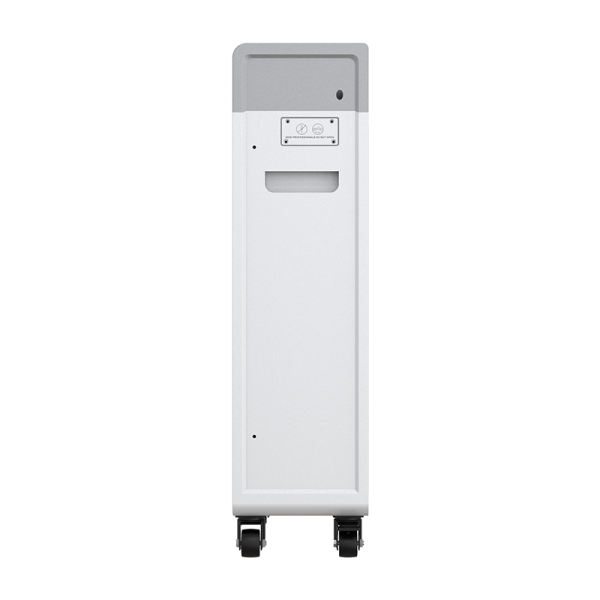

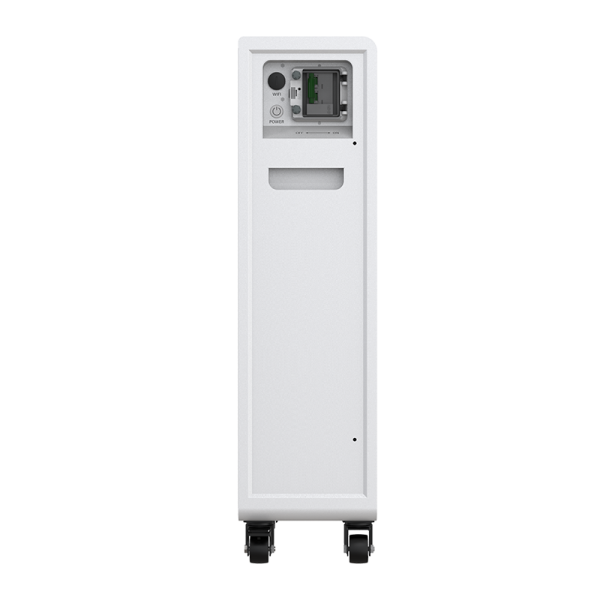

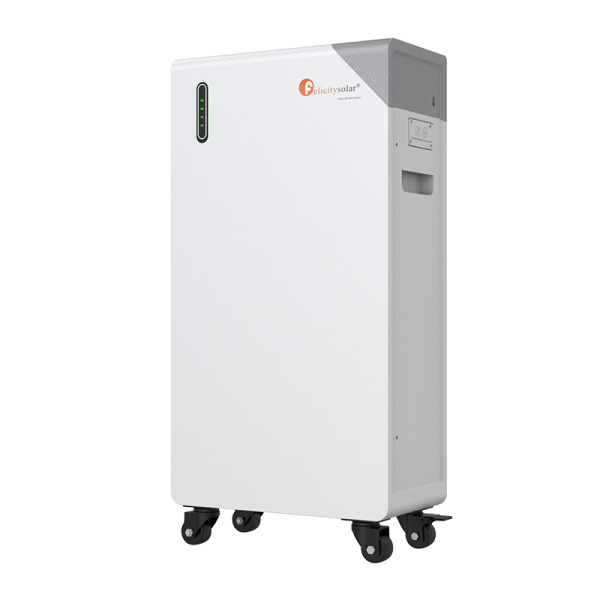

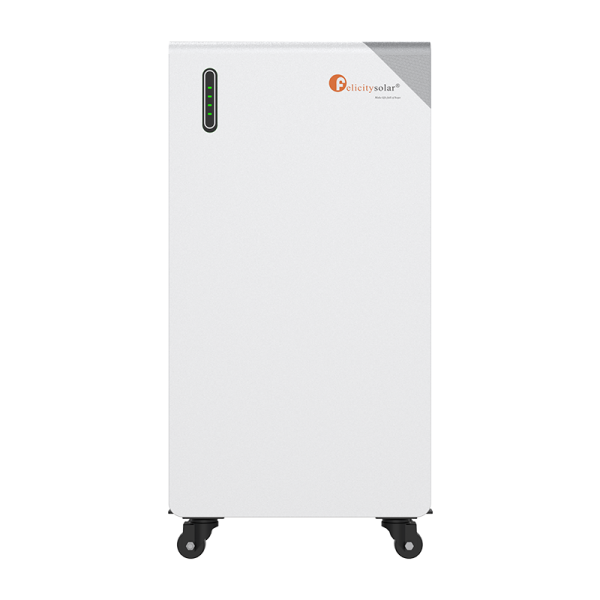

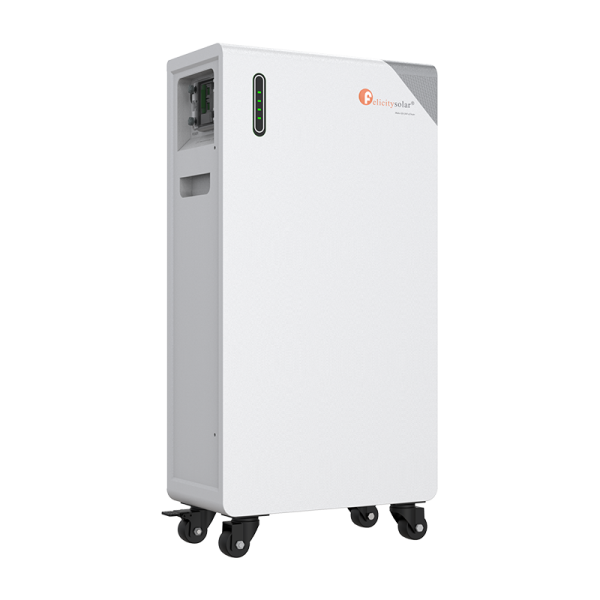

FLB Series

FLB 48314TG1/-H

16kWh

314Ah

Low Voltage

automatic heating/ optional

Built-in WiFi/Bluetooth

IP65 Protection Level

Built-in aerosol fire extinguisher

Product Introduction

FLB48314TG1 / FLB48314TG1-H is a lithium iron phosphate (LiFePO₄) battery system designed for household energy storage. Developed based on customer needs and market demands, this advanced battery storage solution delivers high-quality, reliable power for a wide range of household devices. It features a long service life, excellent performance in harsh environments, and a compact design that requires minimal installation space. The FLB48314TG1-H model is additionally equipped with a built-in heating module, enabling stable battery charging in low-temperature conditions down to -20 °C, making it suitable for colder climates.

Product Advantages

LiFePO₄ battery: High safety performance and long cycle life.
Multiple protection: Built-in smart BMS, breaker and fuse.
High scalability: Supports up to 32 units in parallel, expandable to 512 kWh.
Wide compatibility: Compatible with leading inverter brands.
Flexible installation: Floor-mounted design with minimal space requirement.
Built-in WiFi/Bluetooth: Remote monitoring of battery pack data.
IP65 protection level: Suitable for outdoor and harsh environments.
Integrated aerosol fire extinguishing system for enhanced safety.
Externally replaceable fuse for easy maintenance.
Low-temperature charging support (-20 °C) available on FLB48314TG1-H.

Model

FLB48314TG1

FLB48314TG1-H

Operating Voltage

44.8-57.6V

Energy

16kWh

Scalability

Up to 32 units in parallel(512kWh)

Depth of Discharge(DOD)

≥95%

Cycle Life

≥8,000 Cycles

Communication

RS485 / CAN

Protection Level

IP65

Heating Module

No

Yes

Working Temperature Range

Charge:0°C~+55°C
Discharge:-20°C~+55°C

	Model	FLB48314TG1	FLB48314TG1-H
Common Specifications
	Operating Voltage	44.8-57.6V
	Energy	16kWh
	Scalability	Up to 32 units in parallel(512kWh)
	Depth of Discharge(DOD)	≥95%
	Cycle Life	≥8,000 Cycles
	Communication	RS485 / CAN
	Protection Level	IP65
Key Differences
	Heating Module
	Working Temperature Range
		Charge:0°C~+55°C	Charge:-20°C~+55°C
		Discharge:-20°C~+55°C	Discharge:-20°C~+55°C
